Hand-held unit in a plastic housing 150mm x 88mm, complete µC controlled. The shoe electrode is a plastic plate (370mm x 440mm), that includes two stainless steel electrodes for the left and right shoe.

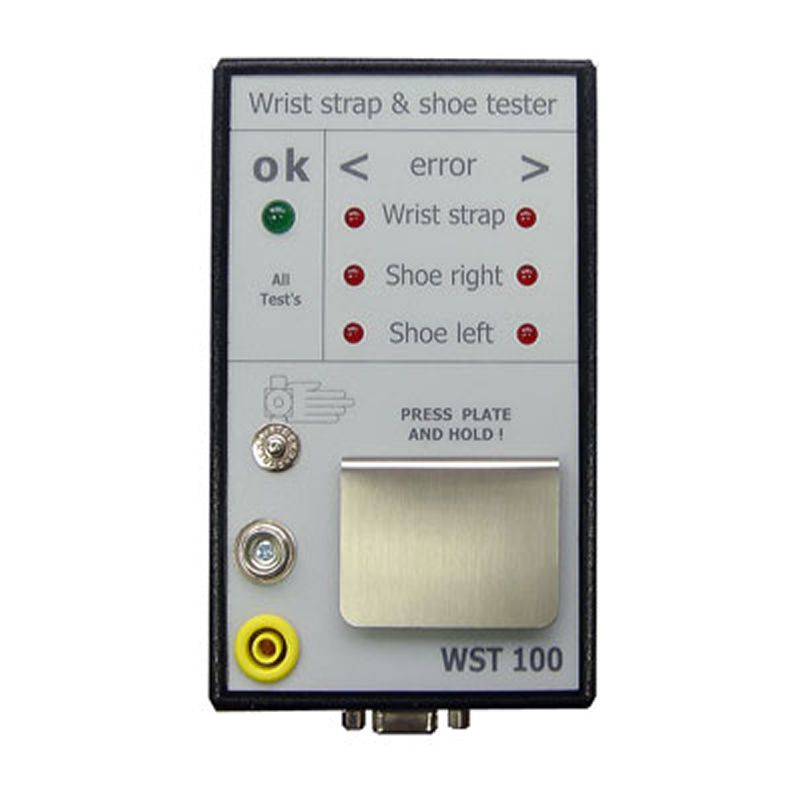

The display includes 7 LEDs:
A green LED (8mm) for o.k.
A faulty measurement is displayed with one red LED one for wrist strap, shoe right or
shoe left ” <“, to low, or “>”, to high
Additionally a buzzer has been integrated.
The appliance possesses an integrated relay 60V / 0,5A (in the shoe electrode).
The device is powered with 4 Mignon (AA) Alkaline batteries, optional: NiMH rechargeable batteries. With approximately 100 measurements a day on 5 days per week the unit will run one year with one battery set.
With the optional plug charger and NiMH accumulators, the appliance can be run permanently.
Specifications:
| Dimensions: | Hand-held unit: approx. 150mm x 88mm x 35mm Shoe electrode: approx. 430mm x 500mm x 10mm |
| Weight: | Hand-held unit: approx. 250g Shoe electrode: approx. 2kg |
| Power supply: | 4 x Mignon (AA) in the hand-held unit optional: Wall wart WST 100 NT |
| Display: | 1 LED 8mm green, 6 LED 5mm red, 1 buzzer |
| Relay contact: | potential-free shutter 60V 2A |
| Measuring principle: | Voltage current measuring principle, therefor constant measuring voltage |
| Measuring voltage: | 20V±5% |
| Connection: | All connections over 9-pin Sub-D plug |
| Tresholds: | The tresholds are seperately adjustable for the wrist strap- and the shoe test. Lower treshold from 0 to 2MΩ upper treshold from 0 to 200MΩCustomized values are available on demand! |
