Easy setup

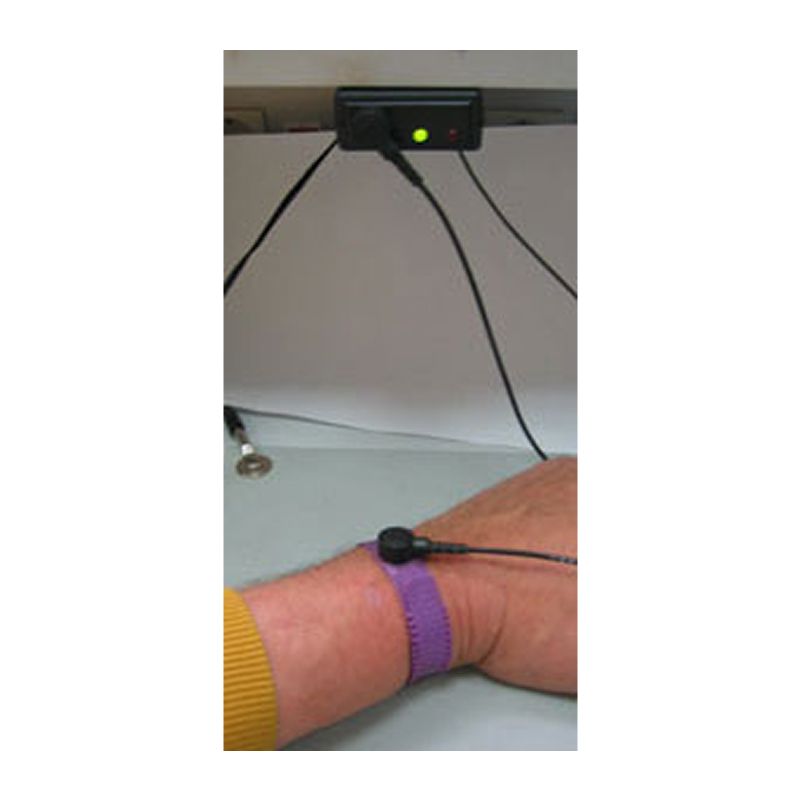

The device is mounted with the equipped power strips at the wrking space and connected with a grounding cable to the grounding point of the table surface.
After the plugging the mains adapter the device is in ready state. The green LED flashes with 0,5Hz and no measurings are made.

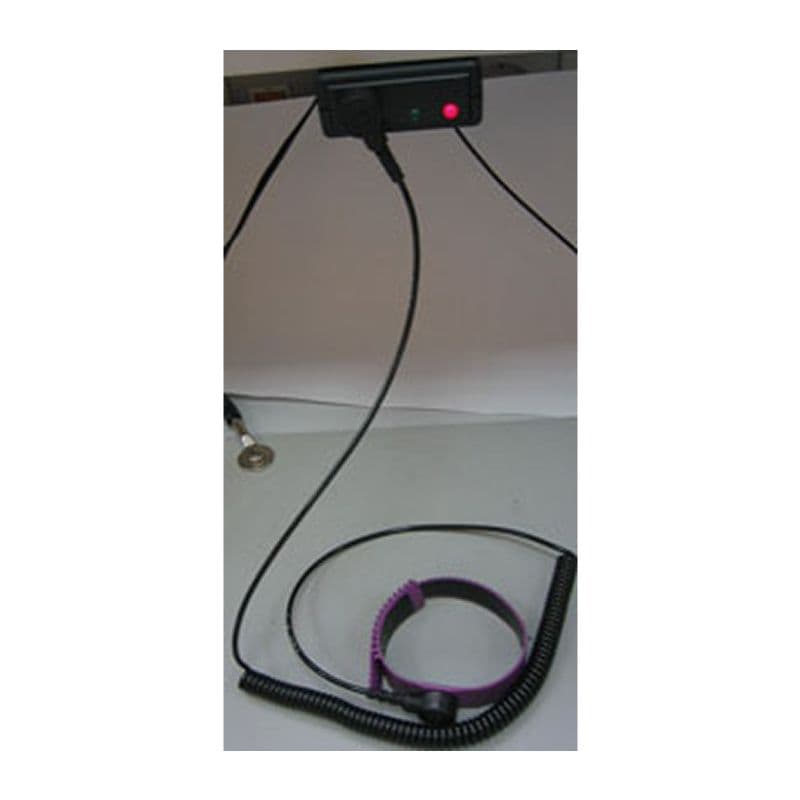

The PGT50 recognizes when a wrist strap is connected and starts the supervision.
Specifications:
| Dimensions: | 96mm x 60mm x 23mm (L x W x H) |
| Weight: | approx. 150g |
| Power supply: | Mains adapter 7,5V= / 150mA |
| Display: | 2 LEDs (red, green), buzzer |
| Measuring priciple: | Frequency measuring over RC element |
